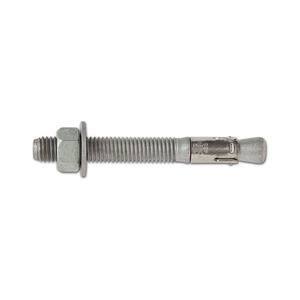

PTB Universal Heavy Duty Throughbolts PTB-G Hot Dipped Galvanized

Uncracked concrete throughbolt

Long thread for flexibility in fixture thicknesses

Special cone angle for quick installation

• Specifications

Catalog Number	Description	Thread	Length	Ring Diameter	Max Tfix (mm)	Pack Qty	Carton Qty
DFM1150050	PTB-G Hot Dipped Galvanized	M8	50	13	5	100	800
DFM1150080	PTB-G Hot Dipped Galvanized	M8	65	13	10	100	400
DFM1150120	PTB-G Hot Dipped Galvanized	M8	85	13	30	100	400
DFM1150160	PTB-G Hot Dipped Galvanized	M8	105	13	50	100	400
DFM1150230	PTB-G Hot Dipped Galvanized	M10	60	17	5	100	400
DFM1150250	PTB-G Hot Dipped Galvanized	M12	80	19	5	50	200
DFM1150280	PTB-G Hot Dipped Galvanized	M10	90	17	10	50	200
DFM1150320	PTB-G Hot Dipped Galvanized	M10	100	17	20	50	200
DFM1150360	PTB-G Hot Dipped Galvanized	M10	120	17	40	50	200
DFM1150440	PTB-G Hot Dipped Galvanized	M10	160	17	80	50	200
DFM1150580	PTB-G Hot Dipped Galvanized	M12	105	19	20	25	100
DFM1150620	PTB-G Hot Dipped Galvanized	M12	120	19	35	25	100
DFM1150640	PTB-G Hot Dipped Galvanized	M12	135	19	50	25	100
DFM1150660	PTB-G Hot Dipped Galvanized	M12	165	19	80	25	100
DFM1150680	PTB-G Hot Dipped Galvanized	M12	175	19	90	25	100
DFM1150730	PTB-G Hot Dipped Galvanized	M16	100	24	5	25	100
DFM1150780	PTB-G Hot Dipped Galvanized	M16	135	24	25	20	80
DFM1150810	PTB-G Hot Dipped Galvanized	M16	160	24	50	10	40
DFM1150830	PTB-G Hot Dipped Galvanized	M16	210	24	100	10	40
DFM1150850	PTB-G Hot Dipped Galvanized	M20	170	30	35	10	40
DFM1150860	PTB-G Hot Dipped Galvanized	M20	120	30	5	10	40
